DOLPHINS, Dataset for cOLlaborative Perception enabled Harmonious and INterconnected Self-driving, provides temporally aligned visual and LiDAR information collected from different perspectives, i.e. vehicles and road side units. We use the CARLA simulator to complete this work, which can provide us with realistic environment modeling, as well as dynamics and sensors simulations of various vehicle.

Our dataset contains 6 different scenarios, including urban intersections, ramps, and highways. Considering the actual driving situation, we meticulously set 3 different viewpoints for each scenario, which will be explained later. For each viewpoint in each scenario, our dataset contains more than 7000 images with the size of 1920 × 1080. Each image includes 3-10 vehicles, and for reasonable scenarios, their images also consist of 1-5 pedestrians. The annotations per image include the following: (i) 2D bounding box of the object in the image, (ii) 3D object dimensions and location, (iii) the value of alpha and rotation y which are defined in the KITTI Vision Benchmark. Besides, to increase the practicability of our dataset, we also provide the corresponding point clouds and calibration files, and the labels are formatted as that of the KITTI Vision Benchmark.

To get download links of the dataset, please mail to mrq20@mails.tsinghua.edu.cn.

Setup

Scene Setup

We select six typical autonomous driving scenarios and several common types of weather from the preset scenarios of the CARLA simulator.

In each scenario, we set three units (RSU or vehicles) to collect both images and point clouds information. (The Sensors Setup on each unit will be specified below.) The first unit is attached to the vehicle we drive, namely, the ego vehicle, that provides us with the main viewpoint. In each simulation round, we initialized it at a specific location. The other two units will also be set up at appropriate positions. They are set on RSUs or auxiliary vehicles selected from the scenario and initialized at a specially designated point with a stochastic vehicle model.

In each scenario, our ego vehicle chooses a specific route. At the same time, we collect the information of all sensors synchronously. After the vehicle passes through the specific scenario, we wind up the current simulation round, reinitialize the scenario and start a new one. During each round, except for our ego vehicle and the possible auxiliary vehicle, all other traffic participants appear on a reasonable position randomly at the beginning and choose their route by themselves freely.

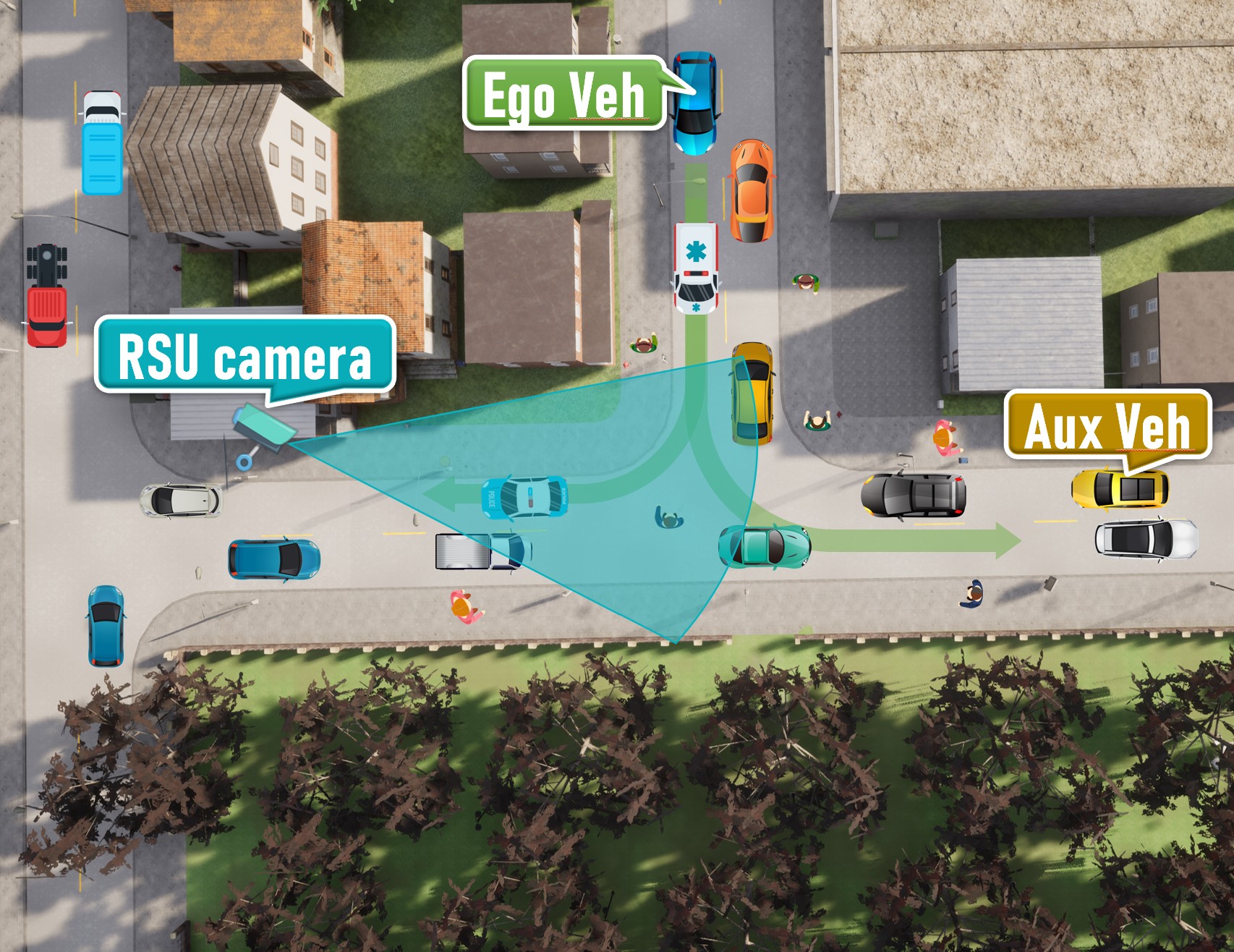

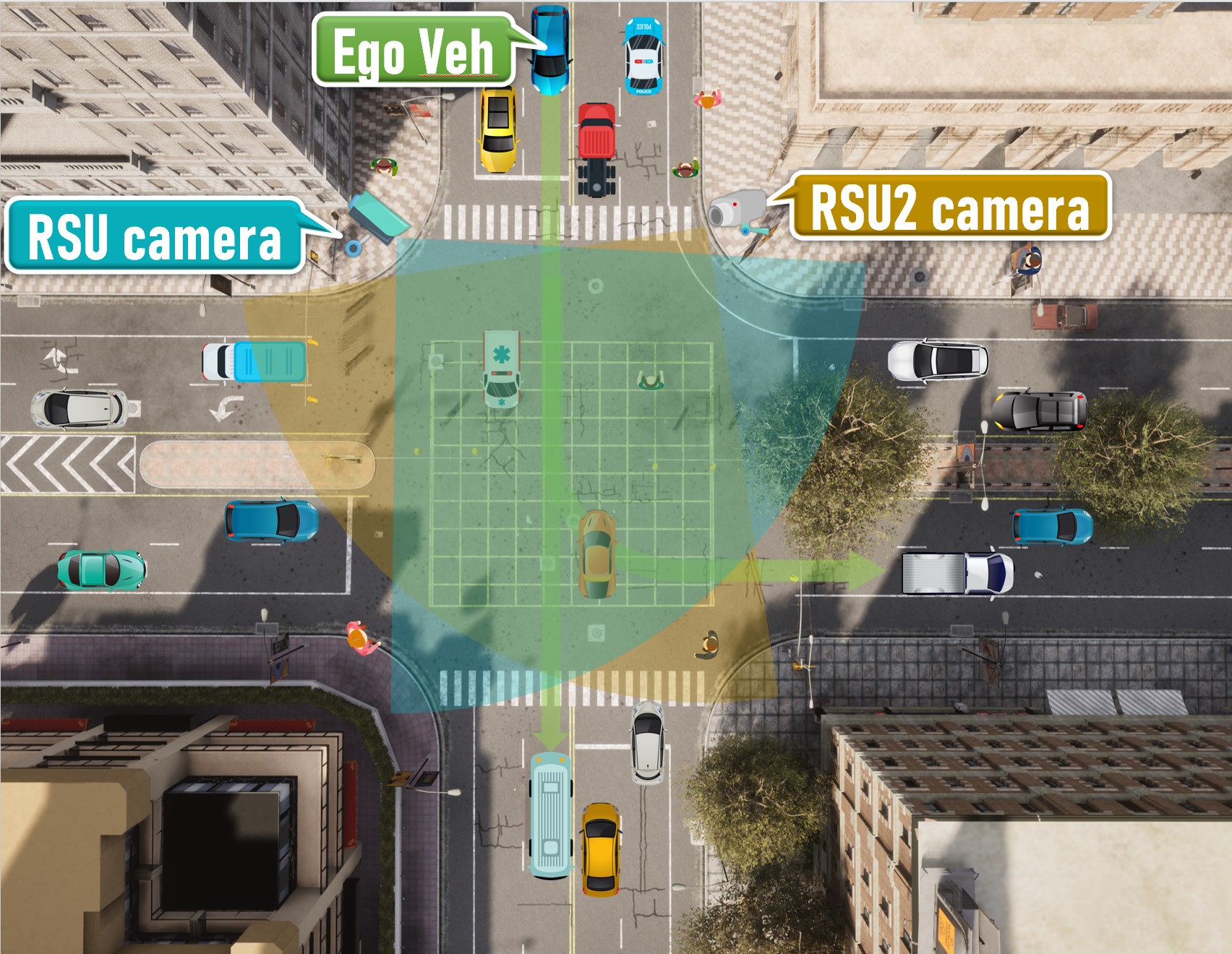

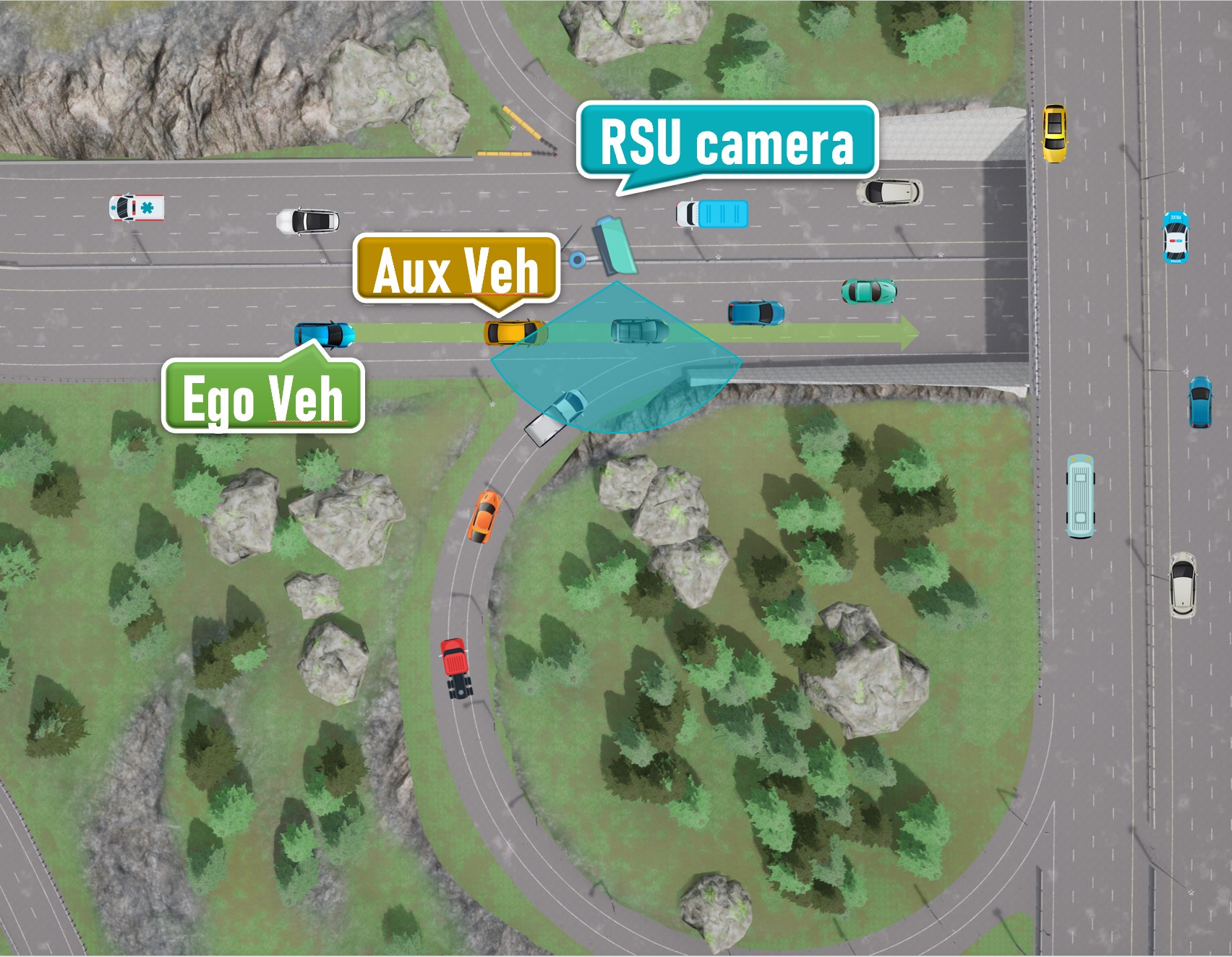

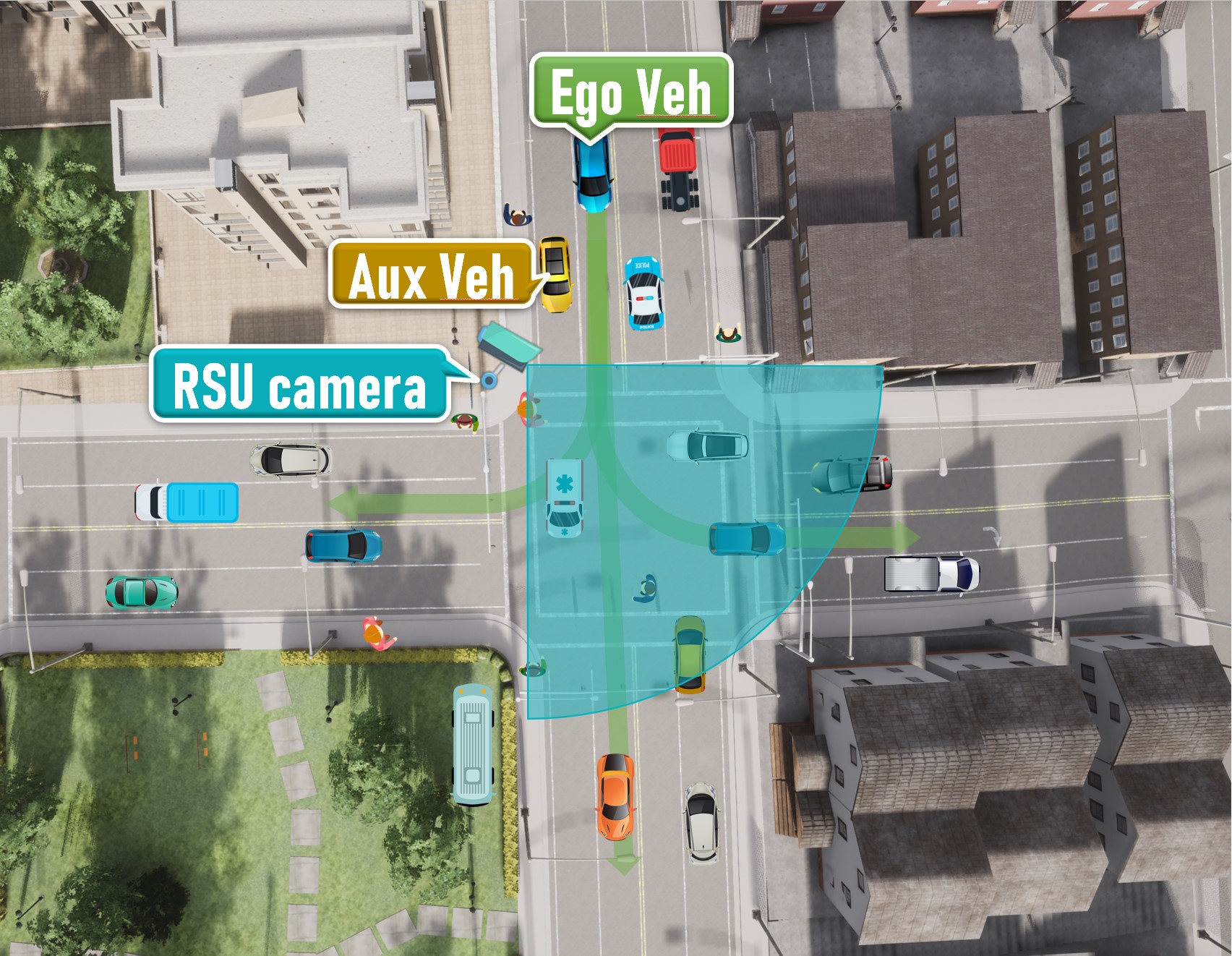

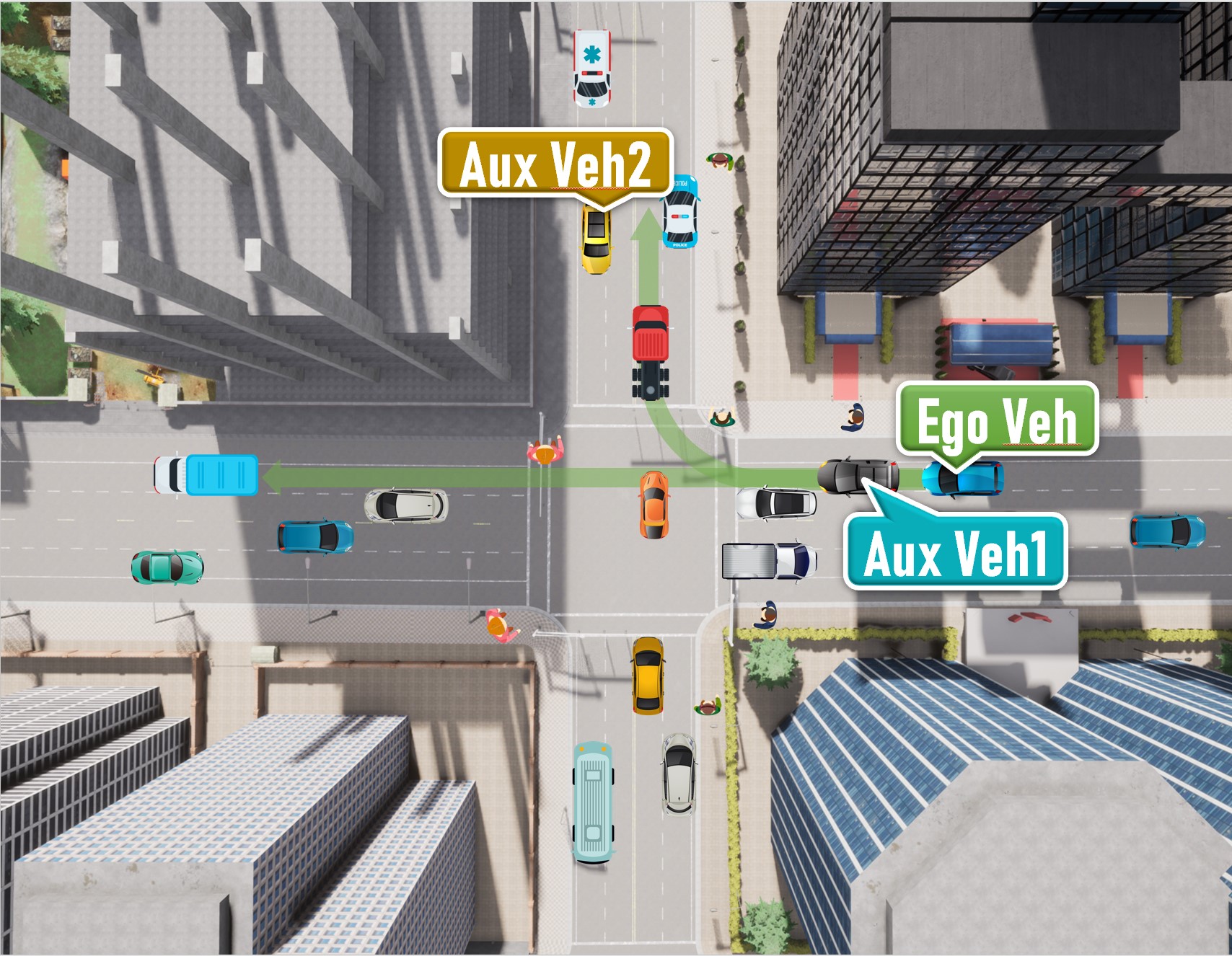

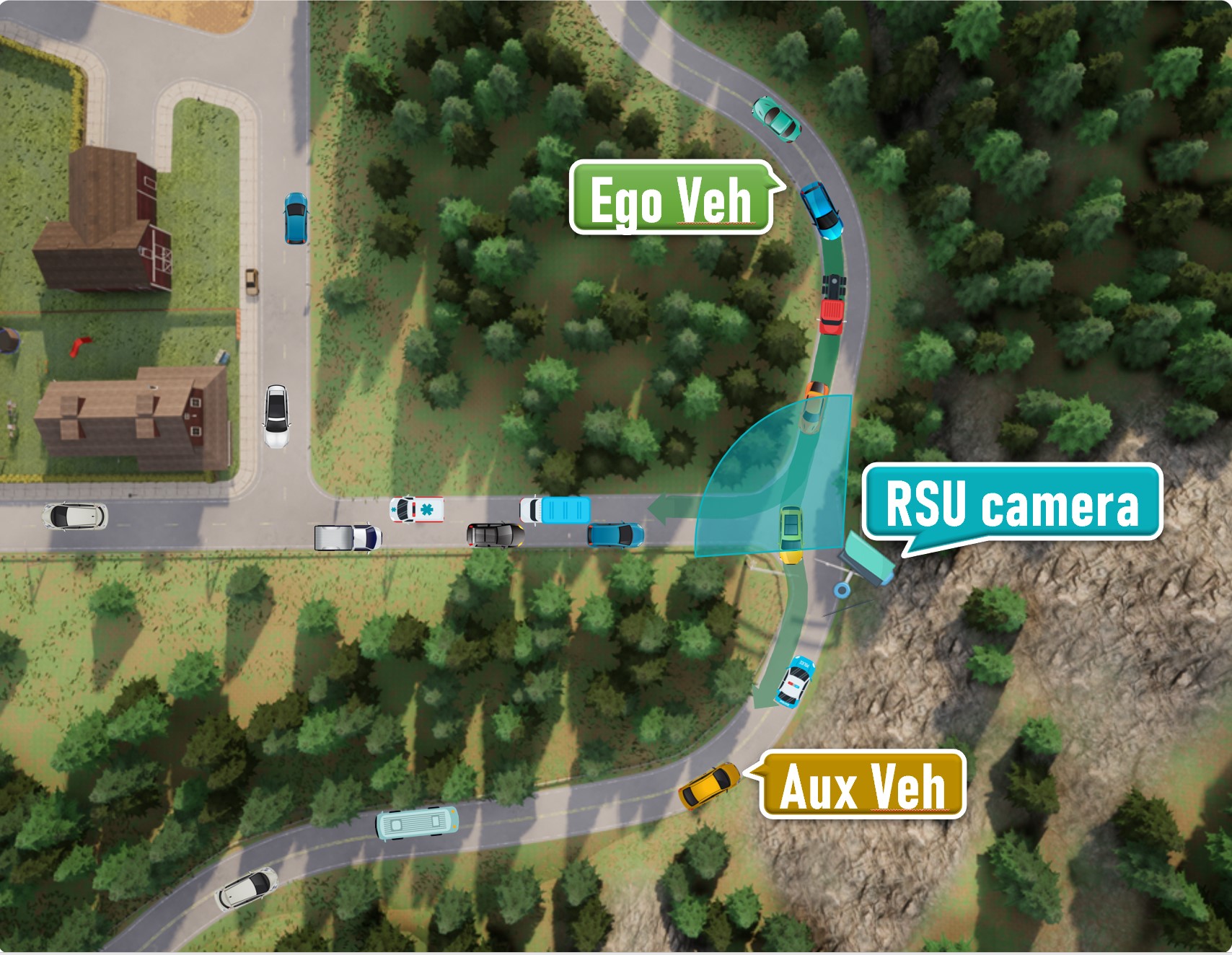

The following shows our diagrammatic sketch of each scenario. All ego vehicles are driving along a pre-defined route (green arrows), while each RSU camera is settled with a fixed direction and range (blue or brown sector mark). We also mark positions where the ego vehicle or possible auxiliary vehicles are initialized.

Sensors Setup

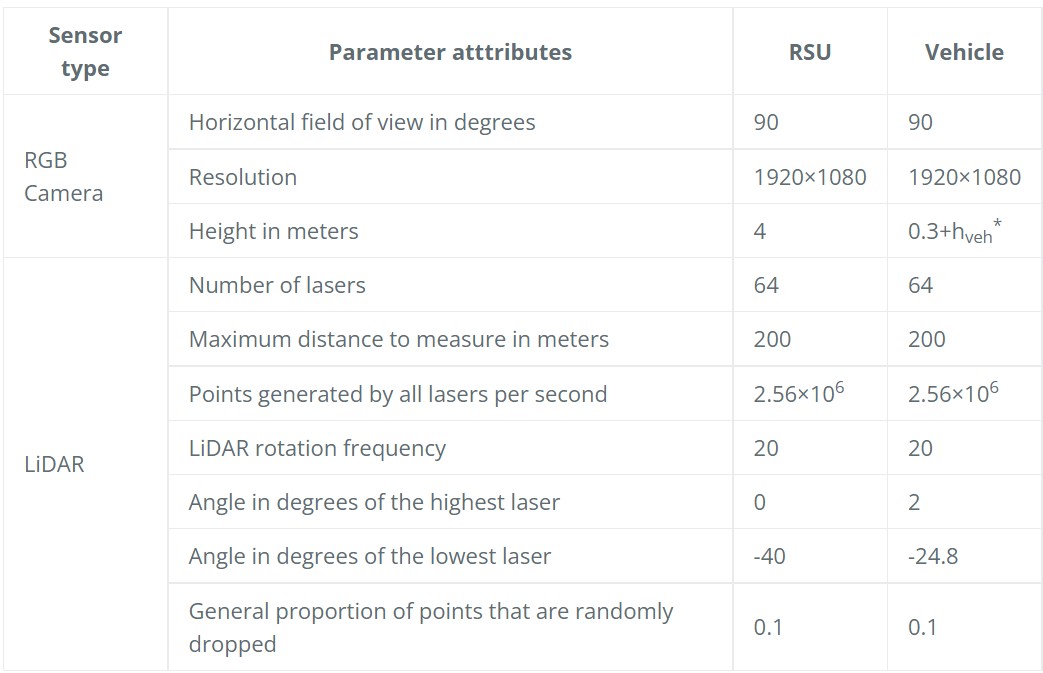

All sensors (including RGB cameras and LiDARs) are set on vehicles as well as road side units (RSUs). All traffic participants move on their own and the data of all sensors are recorded every 0.5 seconds in the simulation environment. we equipped each unit with the following sensors :

*height of the ego vehicle

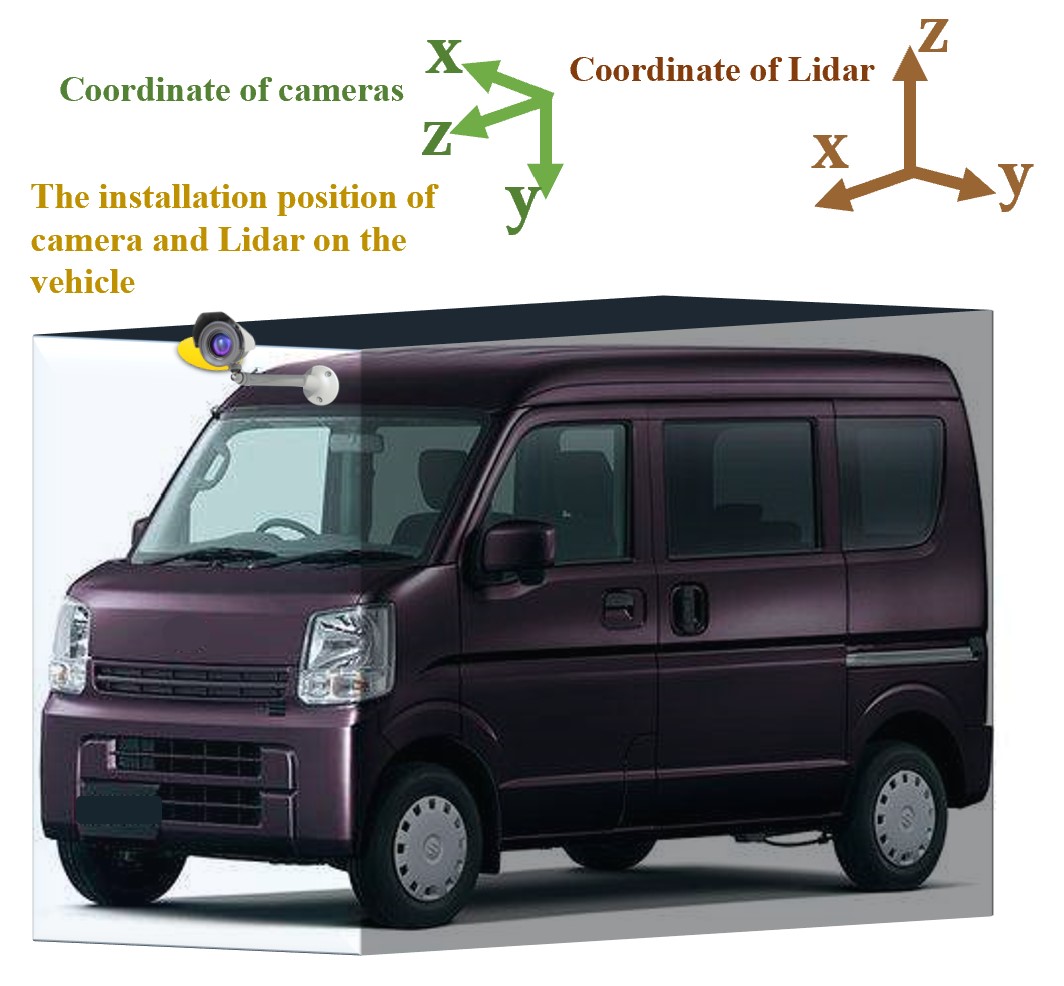

we install the camera and LiDAR on the same point which is above the front of the car as the sketch shows.

Usage

Data Format Description

The data for training and testing can be found in the corresponding folders.

Town0x/
└── test/
└── train/

The sub-folders are structured as follows :

- image_2/ contains the color camera images obtained from the ego vehicle (png)
- image_r/ contains the color camera images obtained from unit 1 (png)
- image_rc/ contains the color camera images obtained from unit 2 (png)
- label_2/ contains the labels of traffic participants within the visible range of the RGB camera from the ego vehicle (plain text files)
- label_r/ contains the labels of traffic participants within the visible range of the RGB camera from unit 1 (plain text files)
- label_rc/ contains the labels of traffic participants within the visible range of the RGB camera from unit 2 (plain text files)
- label_C_2/ contains the labels of traffic participants within 100 meters in front of or behind the ego vehicle, and 40 meters in the left and right directions (plain text files)
- label_C_r/ the same as label_C_2, but the data is recorded from unit 1 (plain text files)
- label_C_rc/ the same as label_C_2, but the data is recorded from unit 2 (plain text files)
- velodyne_2/ contains the point cloud data obtained from the ego vehicle (bin)
- velodyne_r/ contains the point cloud data obtained from unit 1 (bin)
- velodyne_rc/ contains the point cloud data obtained from unit 2 (bin)
- loc/ contains the location information of the ego vehicle and auxiliary vehicles (plain text files)
- calib/ contains the calibration for all cameras and LiDARs (plain text file)

For simplicity，when the scenario has two RSUs or auxiliary vehicles, unit 1 represent RSU1 or aux_veh 1 while unit 2 represent RSU2 or aux_veh 2 ; when it has only one RSU and one auxiliary vehicle, unit 1 and unit 2 indicate RSU and aux_veh repectively.

Annotations

The label files

The label files have similar format as that of the KITTI Vision Benchmark, which means that the tools developed for KITTI can also be used to extract and evaluate this dataset.

Compared with KITTI, our dataset do not provide the truncated, occluded, and alpha values at present (We represent them with their default values). We will further solidify it in the future.

In the label files all values (numerical or strings) are separated via spaces, each row corresponds to one object. The 15 columns represent (It is almost exactly the same as KITTI, so if you are familiar with KITTI, you can skip this part)

Values Name Description
1 type Describes the type of object: ‘Car’, ‘Pedestrian’
1 truncated Float from 0 (non-truncated) to 1 (truncated), where truncated refers to the object leaving image boundaries, still all at default value 0
1 occluded Integer (0,1,2,3) indicating occlusion state: 0 = fully visible, 1 = partly occluded, 2 = largely occluded, 3 = unknown, still all at default value 0
1 alpha Observation angle of object, ranging [-pi..pi], still all at default value -10
4 bbox 2D bounding box of object in the image (0-based index): contains left, top, right, bottom pixel coordinates
3 dimensions 3D object dimensions: height, length, width (in meters)
3 location 3D object location x,y,z in camera coordinates (in meters)
1 rotation_y Rotation r_y around Y-axis in camera coordinates [-pi..pi]
1 score Only for results: Float, indicating confidence in detection, needed for p/r curves, higher is better.

The loc files

we provide the location and rotation (Euler angle) information of cameras on the ego vehicle and auxiliary vehicles.

In the loc files all values are separated via spaces. The first row corresponds to the information of the ego vehicle while the second row records auxiliary vehicle (if it exists). The location and rotation values are in the form of CARLA.transform. The data is described as following :

x_ego_cam y_ego_cam z_ego_cam pitch_ego_cam yaw_ego_cam roll_ego_cam
x_aux_cam y_aux_cam z_aux_cam pitch_aux_cam yaw_aux_cam roll_aux_cam

Calibration

Like KITTI, both the coordinates in the camera coordinate and velodyne coordinate system can be projected in the image.

In the loc files all values are separated via spaces. The meaning of each row of data is as follows :

Values Name Description
12(3*4) P0 The intrinsic matrix of all cameras (used when it is projected to its own image)
12(3*4) P1 The intrinsic matrix used for the camera on unit 1 when it is projected to the camera on the ego vehicle
12(3*4) P2 The intrinsic matrix used for the camera on unit 2 when it is projected to the camera on the ego vehicle
12(3*4) P3 Nothing but the same with P0, we retain it to stay the same with KITTI
12(3*4) Pc-r The intrinsic matrix used for the camera on the *ego vehicle *when it is projected to the camera on unit 1
12(3*4) Pc-rc The intrinsic matrix used for the camera on the ego vehicle when it is projected to the camera on unit 2
9(3*3) R0_rect Corrected rotation matrix of all cameras
12(3*4) Tr_velo_to_cam The extrinsic matrix used to project a point from Velodyne coordinates(*ego *vehicle) into the camera on the *ego *vehicle
12(3*4) Tr_velo_r_to_cam The extrinsic matrix used to project a point from Velodyne coordinates(unit 1) into the camera on the *ego *vehicle
12(3*4) Tr_velo_rc_to_cam The extrinsic matrix used to project a point from Velodyne coordinates(unit 2) into the camera on the *ego *vehicle
12(3*4) TR_imu_to_velo Nothing but default values to stay the same with KITTI

Note: All matrices are stored row-major, i.e., the first values correspond to the first row. R0_rect contains a 3x3 matrix which you need to extend to a 4x4 matrix by adding a 1 as the bottom-right element and 0’s elsewhere. Tr_xxx is a 3x4 matrix (R|t), which you need to extend to a 4x4 matrix in the same way.

coordinate transformation between cameras

You need to normalize when you use them.

For example, you want to project the object in the camera 2’s coordinate into the image of the camera 1. Assuming that the position in the coordinate system of camera 2 is loc, and the intrinsic matrix of cameras 2 to camera 1 is R . Multiply them to get pix = R × loc = [ pix[0], pix[1], pix[2]] , while the corresponding pixel position projected into the camera 1’s image is [u,v] = [ pix[0] / pix[2], pix[1] / pix[2] ]

coordinate transformation between LiDAR and camera

To project a point from Velodyne coordinates(*ego *vehicle) into the *ego *vehicle’s color image, you can use this formula: x = P0 * R0_rect * Tr_velo_to_cam * y

You just need to replace Tr_velo_to_cam by Tr_velo_r_to_cam or Tr_velo_rc_to_cam to project a point from Velodyne coordinates(unit 1 or unit 2) into the ego vehicle’s color image.

Code

Demo codes are released in Github Repo

Copyright

Creative Commons License
All of the Dolphins dataset (data, annotation and software) are copyright by Tsinghua University and published under the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License. This means that you must attribute the work in the manner specified by the authors, you may not use this work for commercial purposes and if you alter, transform, or build upon this work, you may distribute the resulting work only under the same license.

Citation

ACCV 2022

@InProceedings{Mao_2022_ACCV,
    author    = {Mao, Ruiqing and Guo, Jingyu and Jia, Yukuan and Sun, Yuxuan and Zhou, Sheng and Niu, Zhisheng},
    title     = {DOLPHINS: Dataset for Collaborative Perception enabled Harmonious and Interconnected Self-driving},
    booktitle = {Proceedings of the Asian Conference on Computer Vision (ACCV)},
    month     = {December},
    year      = {2022},
    pages     = {4361-4377}
}
